We have provided you with the following information on the connection options for different hose diameters to the GARDENA Submersible Pump.
Please note that the recommended hose diameter is indicated on the packaging. A smaller hose diameter reduces the delivery rate of the pump!
1. connection of a 13mm ½ inch hose 15mm, 5/8 inch hose or 19mm ¾ inch hose with
Clear water submersible pump 9000 Art. 9030
Clear water submersible pump 11000 Art. 9032
Clear water submersible pump 11000 Aquasensor Art. 9034
Dirty water submersible pump 9000 Art. 9040
Dirty water submersible pump 16000 Art. 9042
Clear/dirty water submersible pump 15000 Art. 9048
A ½ inch 13mm hose can be used with the GARDENA tap connector Art. 18202-20 for G 1 inch thread or with the Premium tap connector Art. 18242-20.
The connection nipple (4) must first be cut at item (b). The tap connector or premium tap connector can now be screwed directly onto the thread. As the tap connector is sealed at the front, it may be necessary to seal the thread again using Teflon tape, for example.
The ½ inch 13mm hose can now be connected to the tap connector using a hose connector item 18215-20 or the premium hose connector item 18255-20.
A ¾ inch hose can be connected to the above-mentioned tap connector using the hose connector item 18216-20 or the premium hose connector item 18256-20.
When using a 19mm ¾ inch hose, there is another option for connecting the hose with the GARDENA professional system. As mentioned above, the connection nipple must be cut at item (b). The Profi system tap connector Art. 2802-20 can now be fitted to the G1 inch thread. As mentioned, it may be necessary to additionally seal the thread using Teflon tape. The 19mm ¾ inch hose can now be connected with the professional system hose piece item 2817-20
2. connection of a 13mm ½ inch hose, 15mm 5/8 inch hose or 19mm ¾ inch hose with
Clear water submersible pump 17000 Aquasensor Art. 9036
Dirty water submersible pump 20000 Aquasensor Art. 9044
Dirty water submersible pump 20000 Art. 9045
Dirty water submersible pump 25000 Art. 9046
Clear/dirty water submersible pump 19500 Aquasensor Art. 9049
No G1 inch thread is provided for the connection nipple on these pumps. The connection nipple of the clear water submersible pump 11000 Aquasensor Art. 9034 with the spare part number Art. 09034-00.610.05 can be used. The further procedure is as described under point 1.
3. connection of a 1 inch 25mm hose with
Clear water submersible pump 9000 Art. 9030
Clear water submersible pump 11000 Art. 9032
Clear water submersible pump 11000 Aquasensor Art. 9034
Dirty water submersible pump 9000 Art. 9040
Dirty water submersible pump 16000 Art. 9042
Clear/dirty water submersible pump 15000 Art. 9048
Clear/dirty water submersible pump 19500 Aquasensor Art. 9049
A 1 inch 25mm hose can be connected directly to the upper connection nipple on the above-mentioned submersible pumps. Use a so-called hose clamp, which you can purchase in stores.
4. connection of a 1 inch 25mm hose with
Clear water submersible pump 17000 Aquasensor Art. 9036
Dirty water submersible pump 20000 Aquasensor Art. 9044
Dirty water submersible pump 20000 Art. 9045
Dirty water submersible pump 25000 Art. 9046
Clear/dirty water submersible pump 19500 Aquasensor Art. 9049
No 1 inch connection is provided for the connection nipple on these pumps. The connection nipple of the clear water submersible pump 11000 Aquasensor Art. 9034 with the spare part number Art. 09034-00.610.05 can be used. The further procedure is as described under point 3.
5. connection of a 1 ¼ inch 32mm hose with
Clear water submersible pump 9000 Art. 9030
Clear water submersible pump 11000 Art. 9032
Dirty water submersible pump 9000 Art. 9040
A 1 ¼ inch 25mm hose cannot be connected directly to the above-mentioned submersible pumps. A 1 ¼ inch hose can be used via the existing G1 inch connection or the connection for the 1 ½ inch using an adapter.
6. connection of a 1 ¼ inch 32mm hose with
Clear water submersible pump 11000 Aquasensor Art. 9034
Dirty water submersible pump 16000 Art. 9042
Clear/dirty water submersible pump 15000 Art. 9048
Clear/dirty water submersible pump 19500 Aquasensor Art. 9049
A separate connection nipple is included for both pumps, to which a 1 ¼ inch hose can be connected directly with a hose clamp. Hose clamps are available commercially.
7. connection of a 1 ¼ inch 32mm hose with
Clear water submersible pump 17000 Aquasensor Art. 9036
Dirty water submersible pump 20000 Aquasensor Art. 9044
Dirty water submersible pump 20000 Art. 9045
Dirty water submersible pump 25000 Art. 9046
Clear/dirty water submersible pump 19500 Aquasensor Art. 9049
A 1 ¼ inch 32 mm hose can be connected directly to the upper connection nipple on the above-mentioned submersible pumps. Use a so-called hose clamp for fastening, which you can purchase commercially.
8. connection of a 1 ½ inch 38mm hose with
Clear water submersible pump 9000 Art. 9030
Clear water submersible pump 11000 Art. 9032
Clear water submersible pump 11000 Aquasensor Art. 9034
Dirty water submersible pump 9000 Art. 9040
Dirty water submersible pump 16000 Art. 9042
Clear water/dirty water submersible pump 15000 Art. 9048
The connection nipple (4) must first be cut at item (a). A 1 ½ inch 38 mm hose can now be connected directly to the connection nipple. Use a so-called hose clamp for fastening, which you can purchase commercially.
9. connection of a 1 ½ inch 38mm hose with
Clear water submersible pump 17000 Aquasensor Art. 9036
Dirty water submersible pump 20000 Aquasensor Art. 9044
Dirty water submersible pump 20000 Art. 9045
Dirty water submersible pump 25000 Art. 9046
Clear/dirty water submersible pump 19500 Aquasensor Art. 9049
The connection nipple (4) must first be cut at item (b). A 1 ½ inch 38 mm hose can now be connected directly to the connection nipple. Use a so-called hose clamp for fastening, which you can purchase commercially.
10. connection of a 2 inch 51mm hose with
Clear water submersible pump 17000 Aquasensor Art. 9036
Dirty water submersible pump 20000 Aquasensor Art. 9044
Dirty water submersible pump 20000 Art. 9045
Dirty water submersible pump 25000 Art. 9046
Clear/dirty water submersible pump 19500 Aquasensor Art. 9049
The connection nipple (4) must first be cut at item (a). A 2 inch 51mm hose can now be connected directly to the connection nipple. Use a so-called hose clamp, which you can purchase commercially, to attach it.
11. connection of a 2 inch 51mm hose with
Clear water submersible pump 11000 Aquasensor Art. 9034
Dirty water submersible pump 16000 Art. 9042
Clear/dirty water submersible pump 15000 Art. 9048
A 2 inch 51mm hose cannot be connected directly to the above-mentioned submersible pumps. The connection nipple of the clear water submersible pump 17000 Aquasensor Art. 9036 with the spare part number Art. 9036-00.610.01 can be used. The further procedure is described under point 10.
12. connection of a fixed coupling / aluminum coupling to
Clear water submersible pump 9000 Art. 9030
Clear water submersible pump 11000 Art. 9032
Dirty water submersible pump 9000 Art. 9040
Only fixed couplings with a connection thread and internal diameter of 1 inch can be connected directly to the above-mentioned submersible pumps. If a larger internal diameter is to be connected, a corresponding adapter must be fitted.
The connection nipple (4) must first be cut at item (b). The fixed coupling can now be fitted. The thread may need to be sealed.
The maximum outer diameter of the fixed coupling can be 120 mm. Recommended coupling variant "C-1" (Storz coupling) with an outer diameter of 98mm.
13. connection of a fixed coupling / aluminum coupling to
Clear water submersible pump 11000 Aquasensor Art. 9034
Clear water submersible pump 17000 Aquasensor Art. 9036
Dirty water submersible pump 16000 Art. 9042
Dirty water submersible pump 20000 Aquasensor Art. 9044
Submersible waste water pump 20000 Art. 9045
Dirty water submersible pump 25000 Art. 9046
Clear/dirty water submersible pump 15000 Art. 9048
Clear/dirty water submersible pump 19500 Aquasensor Art. 9049
Fixed couplings with connection threads and internal diameters of 1 inch and 1 ½ inches can be connected to the above-mentioned submersible pumps.
With the 9034 and 9042, it is possible to attach a fixed coupling with a connection thread with an internal diameter of 1 inch directly to the connection nipple. The connection nipple (4) must first be cut at item (b). The fixed coupling can now be fitted. The thread may need to be sealed. The maximum outer diameter of the fixed coupling can be 125 mm. We recommend coupling variant "C-1" (Storz coupling) with an outer diameter of 98 mm.
For the 9034, 9042 and all other submersible pumps mentioned above, a fixed coupling with a connection thread of 1 ½ inches can be mounted directly onto the quick connector (3). To do this, completely remove the connection nipple. The thread may need to be sealed. The maximum outer diameter of the fixed coupling can be 100 mm. Coupling variant C-1 1/2" (Storz coupling) with an outer diameter of 98mm.

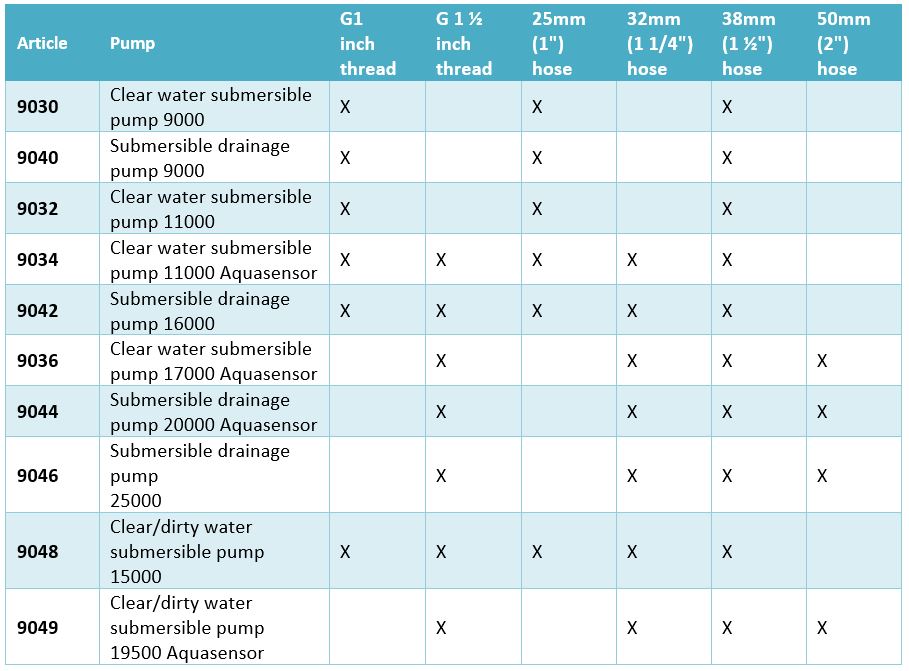

Overview of the connection options
