You will find detailed disassembly instructions below.
CAUTION: Do not open the robotic lawnmower any further than described in the following steps. Incorrect assembly can cause damage that is not covered by the warranty.

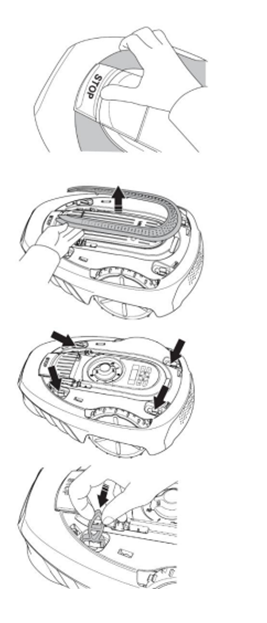

1. we recommend using the special tool Art.00059-87.642.01, which you can order directly from us, to remove the housing of the robotic lawnmower.
2. grab the gray frame right next to the stop button and pull it upwards.
3. now use the special tool to detach the housing from the mounts (4 pieces).
4. pull the housing upwards and away.
5. reassemble in the reverse order.
