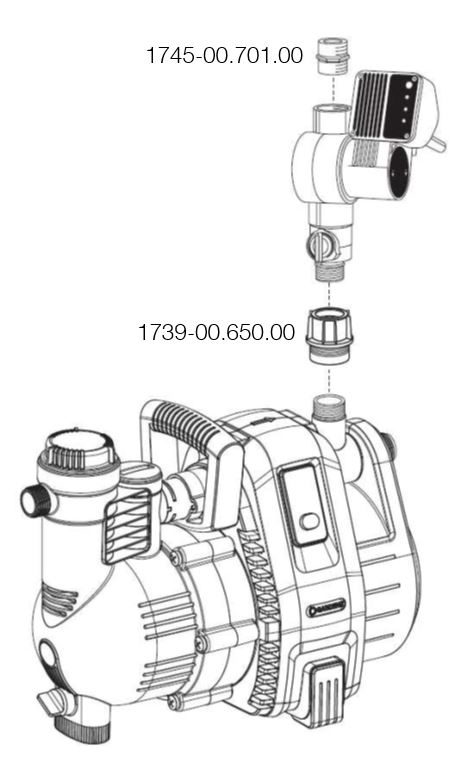

Garden pumps can be converted into automatic domestic water systems by fitting the electronic pressure switch.
The power switch on the garden pump must remain switched on. The pressure switch switches the pump on and off.
When installing a pressure switch on the garden pumps 5000/5 article 1734 and the garden pump 6000/6 inox article 1736, the special mode of the garden pump must be activated.
Activate special mode:
1. press and hold the On/Off button for 8 seconds when switching on until the green LED stops flashing.
2. the special mode is activated
Deactivate special mode:
1. insert the mains plug into a live mains socket. The pump starts automatically.
2. press the On/Off button. Pump switches off.
3. press and hold the On/Off button for 8 seconds when switching on until the green LED stops flashing.
4. special mode is deactivated.
Direct start must be activated for the garden pump 6300 SilentComfort article 9058 or garden pump 6500 SilentComfort article 9059. Details can be found in the operating instructions.
